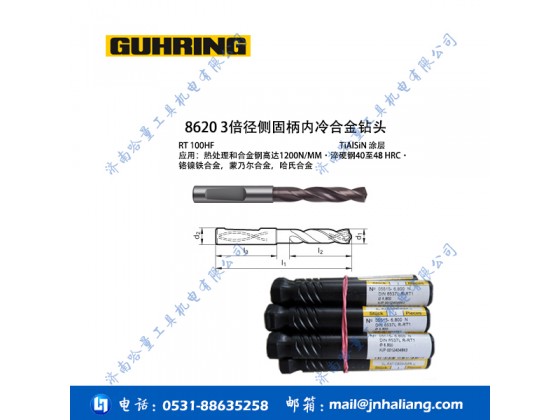

8620 3倍径侧固柄内冷合金钻头
型号:8620 3倍径侧固柄内冷合金钻头
规格:
产品简介:
| 订货号 | 刃径 | 刃长 | 全长 | 柄径 Ø |
| 8620-3.300 | 3.3 | 20 | 62 | 6 |
| 8620-3.400 | 3.4 | 20 | 62 | 6 |
| 8620-3.500 | 3.5 | 20 | 62 | 6 |
| 8620-3.700 | 3.7 | 20 | 62 | 6 |
| 8620-3.800 | 3.8 | 24 | 66 | 6 |
| 8620-4.300 | 4.3 | 24 | 66 | 6 |
| 8620-4.800 | 4.8 | 28 | 66 | 6 |
| 8620-5.000 | 5 | 28 | 66 | 6 |
| 8620-6.600 | 6.6 | 34 | 79 | 8 |
| 8620-7.000 | 7 | 34 | 79 | 8 |
| 8620-7.400 | 7.4 | 41 | 79 | 8 |
| 8620-7.800 | 7.8 | 41 | 79 | 8 |
| 8620-8.000 | 8 | 41 | 79 | 8 |
| 8620-8.100 | 8.1 | 47 | 89 | 10 |
| 8620-8.200 | 8.2 | 47 | 89 | 10 |
| 8620-8.400 | 8.4 | 47 | 89 | 10 |
| 8620-9.000 | 9 | 47 | 89 | 10 |
| 8620-9.300 | 9.3 | 47 | 89 | 10 |
| 8620-9.500 | 9.5 | 47 | 89 | 10 |
| 8620-9.800 | 9.8 | 47 | 89 | 10 |
| 8620-10.000 | 10 | 47 | 89 | 10 |
| 8620-10.200 | 10.2 | 55 | 102 | 12 |
| 8620-10.500 | 10.5 | 55 | 102 | 12 |
| 8620-10.700 | 10.7 | 55 | 102 | 12 |
| 8620-10.800 | 10.8 | 55 | 102 | 12 |
| 8620-11.000 | 11 | 55 | 102 | 12 |
| 8620-11.800 | 11.8 | 55 | 102 | 12 |
| 8620-12.200 | 12.2 | 60 | 107 | 14 |
| 8620-12.500 | 12.5 | 60 | 107 | 14 |
| 8620-13.000 | 13 | 60 | 107 | 14 |
| 8620-14.000 | 14 | 60 | 107 | 14 |
| 8620-14.200 | 14.2 | 65 | 115 | 16 |
| 8620-14.290 | 14.29 | 65 | 115 | 16 |
| 8620-14.700 | 14.7 | 65 | 115 | 16 |
| 8620-15.000 | 15 | 65 | 115 | 16 |
| 8620-15.500 | 15.5 | 65 | 115 | 16 |
| 8620-16.000 | 16 | 65 | 115 | 16 |
| 8620-16.500 | 16.5 | 73 | 123 | 18 |
| 8620-17.000 | 17 | 73 | 123 | 18 |
| 8620-18.000 | 18 | 73 | 123 | 18 |
| 8620-19.000 | 19 | 79 | 131 | 20 |
| 8620-19.500 | 19.5 | 79 | 131 | 20 |
